Simplify wiring

USB power supply

To power the receiver, flight controller, OSD or servo

To power the receiver, flight controller, OSD or servo

Three flash modes of LED lights can be chosen by switch

Move the switch to low position to trigger the buzzer & LED lights

The buzzer will beep & LED light will blink when voltage
gets below the threshold

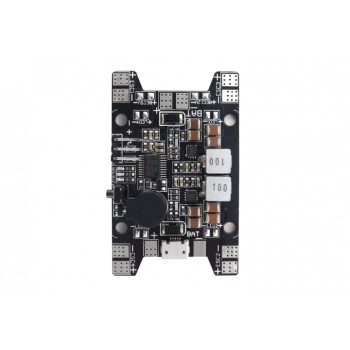

SK-600097-02 Discontinued

Description
Downloads

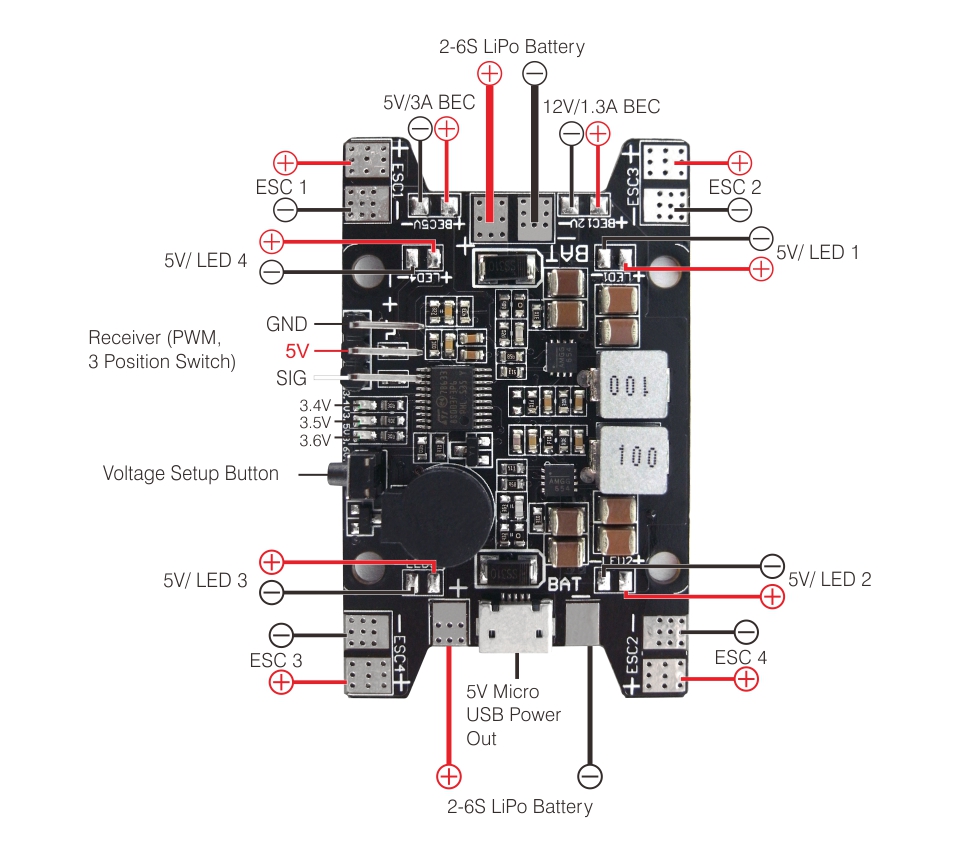

	This six-in-one power HUB is specially designed for FPV Quadcopter to simplify wiring. It comes with 6 functions :

	Working Voltage		2-6S LiPo
	BEC Output		5V/3A 12V/1.3A
	USB Output		5V/2.1A
	Weight		11.5g
	Dimension		58x36x6.5mm

Manuals

Multi Function Power Hub Instruction Manual V1.20 pdf

2017-09-06

View Download
