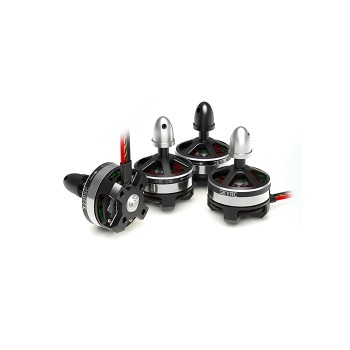

X2205E Motor
SK-400021 Discontinued
MOTOR AND ESC 2 IN 1
Motor-X2205E
Motor-X2205E
Violent
2400KV/20A
Compact
1+1=1
Light
Only 38g
Features
- oneshot and damping light enabled.
- twisted signal cable effectively reduced the signal cross-talk making the plane more stable.
- genuine NMB bearings,smoother and quieter rotation.
- 0.2mm ultra-thin silicon steel laminations, low eddy current loss.
- balance calibration to ensure best concentricity.
Violent
2400KV super-fast motor, 25A high burst current ESC.
Compact
Room saving and no more hasslewith Soldering and Wiring.

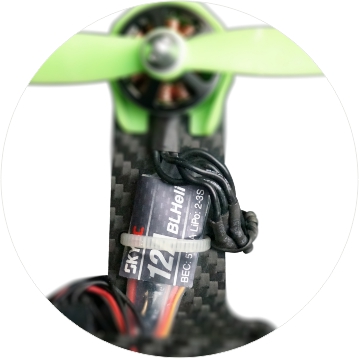

Integrated Motor and ESC
Independent Motor and ESC
Dimensions
Four Mounting Holes Suitable for Various Frames.
| Throttle Rate(%) | Current(A) | Power(w) | Efficiency(G/W) | Speed(RPM) |
|---|---|---|---|---|
| 25% | 3.2 | 38.4 | 3.10 | 8245 |
| 50% | 7.6 | 91.2 | 2.7 | 11580 |
| 75% | 12.1 | 145.2 | 2.80 | 14602 |
| 100% | 20.4 | 244.8 | 2.64 | 17486 |
| KV(RPM/Volt) | 2400KV | ||
| Rotor Poles | 14 | ||
| Voltage | 2-3S LiPo | ||
| Stator | 12 | ||
| Burst Current | 20A (MAX) | ||
| Resistance | 0.065Ω | ||
| Weight | 38g | ||
| No Load Current | 0.9A@12V | ||
| Length | 34mm | ||
| Shaft | Φ3mm | ||
| Diameter | 28mm |
