X2205 Motor
SK-400024 Discontinued
SkyRC X2205 KV2400
Brushless Motor for FPV Racing Drone
Brushless Motor for FPV Racing Drone
The SkyRC X2205 Brushless Motor, equipped with high revolutions and large torque, is mainly for 250mm,210mm and smaller size FPV Racing Drone.
Better Material
High Punity Copper Windings for Maximizes Conductivity High Quality Bearings for Less Resistance
Better Construction
Leaf-shaped Front Cap for Better Heat Dissipation Silicon Cable for Easy Cut and Neat Wiring
Better Craft
Balance Correction Before Leaving Factory for Best Balance While Running
Exploded View
Package

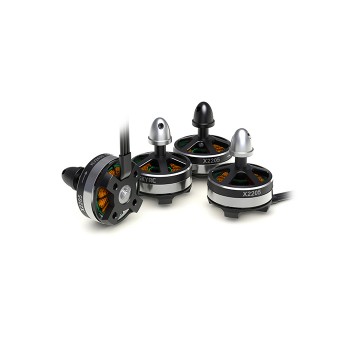

Standard Package comes with 4pcs motors (2pcs CW motor, 2pcs CCW motors) included wire and screws.
| Voltage/Size | Throttle Rate(%) | Current(A) | Thrust(G) | Power(w) | Efficiency(G/W) | Speed(RPM) |
|---|---|---|---|---|---|---|
|
12v 6040 Propeller |
25% | 3 | 13 | 36 | 3.6 | |
| 50% | 7 | 270 | 84 | 3.2 | ||
| 75% | 11.2 | 410 | 134.4 | 3.05 | ||
| 100% | 19.5 | 640 | 234 | 2.65 | 18163 |
| KV(RPM/Volt) | 2400KV | ||
| Rotor Poles | 14 | ||
| Voltage |
2-4S LiPo (When using 4S LiPo, make sure the propeller size is smaller than 6'') |
||
| Recommended Frame | 180mm & 210mm | ||
| Stator | 12 | ||
| Resistance | 0.075Ω | ||
| Weight | 27.5g | ||
| No Load Current | 0.9A@12V | ||
| Length | 32.8mm | ||
| Shaft | Φ3mm | ||
| Diameter | 28mm |
