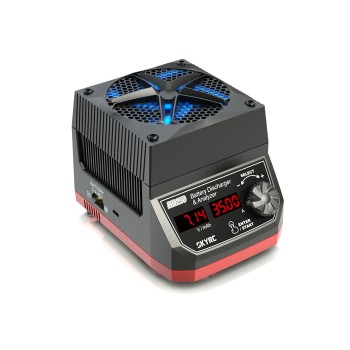

SkyRC BD250 Battery Discharger Analyzer
SK-600133
Battery Discharger &
Analyzer
Analyzer
It displays real-time battery voltage, discharged capacity and discharge current.
It can test battery capacity that helps select batteries with the desired capacity.
It saves time when users wish to store their large capacity batteries.
It helps activate the best performance of your batteries for competition.
It can test battery capacity that helps select batteries with the desired capacity.
It saves time when users wish to store their large capacity batteries.
It helps activate the best performance of your batteries for competition.
SIMPLE, ROBUST,
AND POWERFUL
AND POWERFUL
Upgraded from BD200, BD250 is not only a powerful discharging device but also a precise measurement tool for battery capacity.
It takes the guesswork out of choosing the good-performance battery for your application. BD250 offers a maximum of 250 Watts/35 Amps to discharge your battery and will test virtually any battery type or size, any chemistry cells.
It's stylish but small with a high-performance cooling system and uses MOSFETS from the well-known IXYS, to make sure it can discharge at 250 watts continuously.
Breakthrough Cooling System
A unibody and larger fan pushes air downward through an extruded aluminum heat sink. As air passes vertically through the heat sink, it absorbs heat and carries it out.
Due to cooling efficiency, BD250 can discharge at 250 Watts continuously.
Simple and Intuitive Operation
Rotary Dial, simplify your operation.
Digital LED Display.
provide clearer information.
Digital LED Display.
provide clearer information.
Test virtually any type, size and chemistry battery.
BD250 is a voltage oriented discharger, virtually any type of battery can be operated. Accepted voltage ranges from 5.40V to 35.00V.
2-8S
LiPo LiFe LiHv
6-23S
NiMH NiCd
6-32V
Pb(Lead Acid)
After the discharge process completes, rotate the button to view the real-time battery voltage every 30 seconds for the first six minutes.
At certain intervals, the slower the voltage reduces during discharge, the better the battery performances.
This feature can help to select a good-performance battery for your race or flight.
At certain intervals, the slower the voltage reduces during discharge, the better the battery performances.
This feature can help to select a good-performance battery for your race or flight.
Easy-to-Use PC Software for Data Analysis
PC software supplied with the BD250 is easy to use, intuitive. There are two discharge mode: 1. Constant Power; 2. Constant Current.
The software can automatically sense battery cell counts and recommend a minimum safe discharge voltage.Discharge tests may be viewed in Amp Hours, Watt-hours or Minutes. Results can be graphed as Voltage vs. Amp-hours, Watt-hours, Minutes.
With PC software connected, BD250 allows you to export the battery voltage value at 30 seconds intervals (for the first six minutes).
- LiPo
- LiHV
- NiMH
| No. of Cell | Min. Cut-off Voltage |
Storage Voltage |
Voltage | Min. Discharge Current (A) | Max. Discharge Current (A) |
|---|---|---|---|---|---|
| 2s | 6.0 | 7.60 | 8.40 | 29.76 | 35.00 |
| 3s | 9.0 | 11.40 | 12.60 | 19.84 | 27.77 |
| 4s | 12.0 | 15.20 | 16.80 | 14.88 | 20.83 |
| 5s | 15.0 | 19.00 | 21.00 | 11.90 | 16.66 |
| 6s | 18.0 | 22.80 | 25.20 | 9.92 | 13.88 |
| 7s | 21.0 | 26.60 | 29.40 | 8.50 | 11.90 |
| 8s | 24.0 | 30.40 | 33.60 | 7.44 | 10.41 |
| No. of Cell | Min. Cut-off Voltage |
Storage Voltage |
Voltage | Min. Discharge Current (A) | Max. Discharge Current (A) |
|---|---|---|---|---|---|
| 2s | 6.2 | 7.70 | 8.70 | 28.73 | 35.00 |
| 3s | 9.3 | 11.55 | 13.05 | 19.15 | 26.88 |
| 4s | 12.4 | 15.40 | 17.40 | 14.36 | 20.16 |
| 5s | 15.5 | 19.25 | 21.75 | 11.49 | 16.12 |
| 6s | 18.6 | 23.10 | 26.10 | 9.57 | 13.44 |
| 7s | 21.7 | 26.95 | 30.45 | 8.21 | 11.52 |
| 8s | 24.8 | 30.80 | 34.80 | 7.18 | 10.08 |
| No. of Cell | Min. Cut-off Voltage |
Voltage | Min. Discharge Current (A) | Max. Discharge Current (A) |
|---|---|---|---|---|
| 6s | 5.4 | 9.00 | 27.77 | 35.00 |
| 7s | 6.3 | 10.50 | 23.80 | 35.00 |
| 8s | 7.2 | 12.00 | 20.83 | 34.72 |
| 9s | 8.1 | 13.50 | 18.51 | 30.86 |
| 10s | 9.0 | 15.00 | 16.66 | 27.77 |
| 11s | 9.9 | 16.50 | 15.15 | 25.25 |
| 12s | 10.8 | 18.00 | 13.88 | 23.14 |
| 13s | 11.7 | 19.50 | 12.82 | 21.36 |
| 14s | 12.6 | 21.00 | 11.90 | 19.84 |
| 15s | 13.5 | 22.50 | 11.11 | 18.51 |
| 16s | 14.4 | 24.00 | 10.41 | 17.36 |
| 17s | 15.3 | 25.50 | 9.80 | 16.33 |
| 18s | 16.2 | 27.00 | 9.25 | 15.43 |
| 19s | 17.1 | 28.50 | 8.77 | 14.61 |
| 20s | 18.0 | 30.00 | 8.33 | 13.88 |
What’s in the Box
BD250
Discharging cable with XT60 connector
Fuse
Instruction Manual
Specifications
BD250
The BD250 is a powerful discharging device that allows the user to discharge a battery at up to 35 amps or 250 watts and also measures and compares the performance of batteries. BD250 allows for the precise measurement of battery capacity and takes the guesswork out of choosing the best battery for your application.
Size and Weight
Dimension: 136.6x104.8x107mm
Weight: 879g
Weight: 879g
Power
Accepted Voltage Range: 5.40-35.00V
Low Voltage Alert: <5.2V
High Voltage Alert: >35V Max.
Discharge Power: 250W
Low Voltage Alert: <5.2V
High Voltage Alert: >35V Max.
Discharge Power: 250W
Discharge
Discharge Current Range: 0.01A-35.00A
Discharge Power: 250W
Discharge Power: 250W
Display
Current Consumption in Sleep Mode: <100uA
Capacity Display Accuracy: ±3%
Capacity Display Accuracy: ±3%
Current Display Accuracy:
0.01-10.00A ±60mA
10.00-35.00A ±3%
10.00-35.00A ±3%
Voltage Display Accuracy:
5.4-10V <80mV
10-20V <120mV
20-35V <160mV
10-20V <120mV
20-35V <160mV
