iMAX B6mini
Professional Balance Charger/Discharger

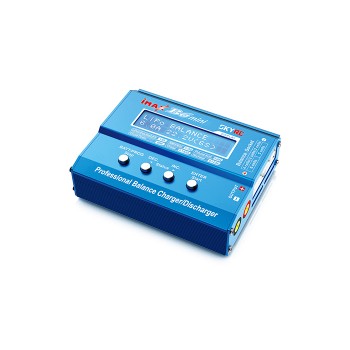

iMAX B6mini Charger
SK-100084
As an upgraded version of well-known IMAX B6 charger, SkyRC IMAX B6 mini is smaller but with bigger power, and new features and functions are integrated. What’s more, users could connect it to PC for PC control and firmware upgrade, and use it as Lithium Battery Meter and Battery Internal Resistance Meter.
SkyRC B6 mini charger is a high-performance, micro-processor controlled charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium High Volage(LiHV),Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and 60W charge power.
Lithium Battery
Balancer
Balancer
Program Data
Store / Load
Store / Load
Battery Resistance
Meter
Meter
Battery Voltage
Meter
Meter
Maximum
Safety
Safety
Terminal Voltage
Control
Control
Built-in Cooling Fan
With Built-in cooling fan, its heat emission efficiency is higher.
Temperature Probe Socket
If the temperature limit is reached, the process will be terminated.
*This function is available by connecting optional temperature probe, which is not included in the package.
*Temperature Probe SK-600040
2-6S XH Plug-in Balance Sockets
LiHV Mode Available
With LiHV mode available, B6 mini is able to charge the 4.35V high voltage LiPo battery.
Different Charging Modes
B6 mini supports various charging modes to users’ convenience.
Normal
Charge Balance Charge Auto
Charge Fast
Charge Discharge Cycle Storage Re-Peak
Charge Balance Charge Auto
Charge Fast
Charge Discharge Cycle Storage Re-Peak
What’s in the Box
iMAX B6mini
DC Cable with Alligator Clip Charging Connector
T Plug with Banana connector Charging Cable
T Plug with Alligator Clip Connector Charging Cable
T Plug with XT60 connector Charging Cable
T Plug with Futaba connector Charging Cable
T Plug with JST connector Charging Cable
Instruction Manual
Screws or parts may differ from website images without prior notice due to availability and other factors. Rest assured that we ensure the function stays integrated!
Model No.
B6EVO
B6EVO
B6V2
B6Mini
B6V2
B6EVO
B6V2
B6Mini
B6Mini
B6EVO
B6V2
B6Mini
SKU
SK-100168
SK-100161
SK-100084
DC Input
11-18V
11-18V
11-18V
DC Output
✔
✔
✖
Charge Power
60W
60W
60W
Discharge Power
5W
5W
5W
Charge Current
0.1-6.0A
0.1-6.0A
0.1-6.0A
Discharge Current
0.1-1.0A
0.1-2.0A
0.1-2.0A
Bal. Current
Max.300mA/Cell
Max.300mA/Cell
Max.200mA/Cell
Trickle Current
50-300mA/OFF
50-300mA/OFF
50-300mA/OFF
LiHV / LiPo / Lilon / Life
1-6S
1-6S
1-6S
NiMH / Nicd
1-15S
1-15S
1-15S
Pb
3P / 6P
3P / 6P
3P / 6P
Dimension
115x84x31mm
115x84x31mm
84x102x29mm
Net Weight
0.24kg
0.24kg
0.3kg
Charge Master
✖
✖
✔
AGM & Cold
✔
✔
✖
Special Feature
Bluetooth Control'
DJI Mavic / Inspire / Phantom Battery
Specifications
Input Voltage
DC11-18V
Circuit Power
Max Charge: 60W
Max Dischage: 5W
Charge Current Range
0.1-6.0A
Discharge Current Range
0.1-2.0A
LiPo/LiFe/LiIon Cells
1-6S
NiMH/NiCd Cells
1-15S
Pb battery Voltage
2-20伏
Net Weight
233g
Size
Length ： 84mm
Width ： 102mm
Height ： 29mm
Width ： 102mm
Height ： 29mm
