NC1500 Charger
SK-100154

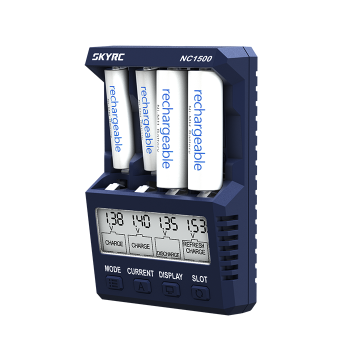

SkyRC NC1500 AA/AAA
Battery Charger & Analyzer.
Battery Charger & Analyzer.
Charging batteries is usually a primitive, boring and mundane activity, and it still is. What matters during the charging process, especially for AA/AAA NiMH battery charging? No doubt, accuracy and safety!
The creation of NC1500 not only arises out of the need but also from the desire to have a simple but safe and accurate charger for the battery.
NC1500 has four independent slots and supports AA/AAA NiMH batteries, offers a maximum charge rate of 1500mA.
The creation of NC1500 not only arises out of the need but also from the desire to have a simple but safe and accurate charger for the battery.
NC1500 has four independent slots and supports AA/AAA NiMH batteries, offers a maximum charge rate of 1500mA.
Four Independent Slot
1-4 pcs of NiMH AA, or AAA can be charged at the same time in any combinations.
One Battery
Double Battery
Triple Battery
Four Battery
3 Working Modes
Charge Mode
- Charging current adjustable 200mA / 500mA / 700mA / 1000mA / 1500mA.
- Useful when battery needs to be recharged without determining the capacity of the battery. It should be used on batteries known to be in good condition and have been in continuous use.
- Useful when battery needs to be recharged without determining the capacity of the battery. It should be used on batteries known to be in good condition and have been in continuous use.
Discharge Mode
- Discharging current adjustable 100mA / 250mA / 350mA / 500mA / 650mA
- Useful for analyzing the amount of charge stored in the battery. Battery not recharged at the end of the cycle.
- Useful for analyzing the amount of charge stored in the battery. Battery not recharged at the end of the cycle.
Refresh Mode
- First recharges the battery, rest for one hours, discharges, rest, then recharges again. Charging and discharging rates are programmable.
- Reports the discharge capacity at the end of the cycle.
- Useful when the battery capacity needs to be determined. Also useful for battery with degraded performance.
- Reports the discharge capacity at the end of the cycle.
- Useful when the battery capacity needs to be determined. Also useful for battery with degraded performance.
Battery Internal Resistance Detection
*At the start of a program, the device always performs a quick standard test first in order to determine the internal battery resistance. Aged or poor condition batteries have a higher IR and therefore heat up more during charge or discharge. The values are estimates and will vary depending on the state of the batteries and operation environment.
Advanced Safety Features
*At the start of a program, the device always performs a quick standard test first in order to determine the internal battery resistance. Aged or poor condition batteries have a higher IR and therefore heat up more during charge or discharge.
Charging Time with
Various Charging Current
Various Charging Current
Charge time is a guide only. Timing may differ according to brands/mAh capacity and environment conditions at the time of charge.
| Size of Battery | Battery Capacity | Charging Current Selected(mA) | Estimated Charging Time |
|---|---|---|---|
| AA | 2600mA | 1500(1 or 2 Pcs) | ~100min |
| 1000 | ~2h 30min | ||
| 700 | ~3h 30min | ||
| 500 | ~5h | ||
| 200 | ~13h | ||
| AAA | 1000mA | 1000 | ~60min |
| 700 | ~70min | ||
| 500 | ~100min | ||
| 200 | ~5h |
Comply with safety and EMC regulation
NC1500 complies with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.
specifications
USB Input Power
5V/2.1A
Trickle Current
50mA
Operation Mode
CHARGE,DISCHARGE and REFRESH
Operating Temperature
0 ~ 45 ℃
Charge Current
200mA / 500mA / 700mA / 1000mA / 1500mA
Discharge Current
100mA / 250mA / 350mA / 500mA / 650mA
Max Charging Capacity
3000 mAh
Weight
106g
size
108*73*28mm
