Power Supply 1200W

SK-200015

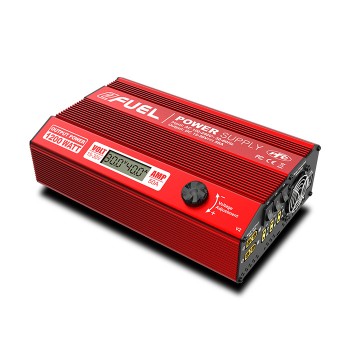

eFUEL 1200W/50A Regulated Power Supply

High Power High Output

Over Temperature Protection

Over Current Protection

Short Circuit Protection

Active PFC

PFC (power factor correction) consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/50A regulated power supply, can provide higher power utilization.

Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.

Intelligent Air
Cooling System

Adopting the cooling system, the fan will be initiated automatically when the operating temperature reaches 50 degrees.

The maximum output of the two main ports is 50A, while each of other three deputy outlets provides up to 10A output with a switch to control respectively.
1200W output with 5 outlets to power your charger, you deserve to have one such power supply.

What’s in the Box

PSU 50A

AC Power Cord

Instruction Manual

specifications

Cooling Method

Cooling Fan

Input AC Frequency

50-60Hz

Input Fuse

20A Fuse

Operating Temperature

0-40℃

Output Current

50A±1A

Output Voltage

15-30V DC±0.5V

Output Voltage Ripple

< 1200mV

Over Temperature Protection

< 65℃

Power Efficiency

89%

Power Factor

> 0.98

Voltage

100-240V AC

LCD Display

Voltage Precision ±0.3V
Current Precision ±0.5A

size

height ： 85mm
length ： 305mm
width ： 170mm
Weight ： 3.08kg

Manuals

200015 eFUEL 1200W Instruction Manual V2.0 pdf

2022-10-19

View Download
