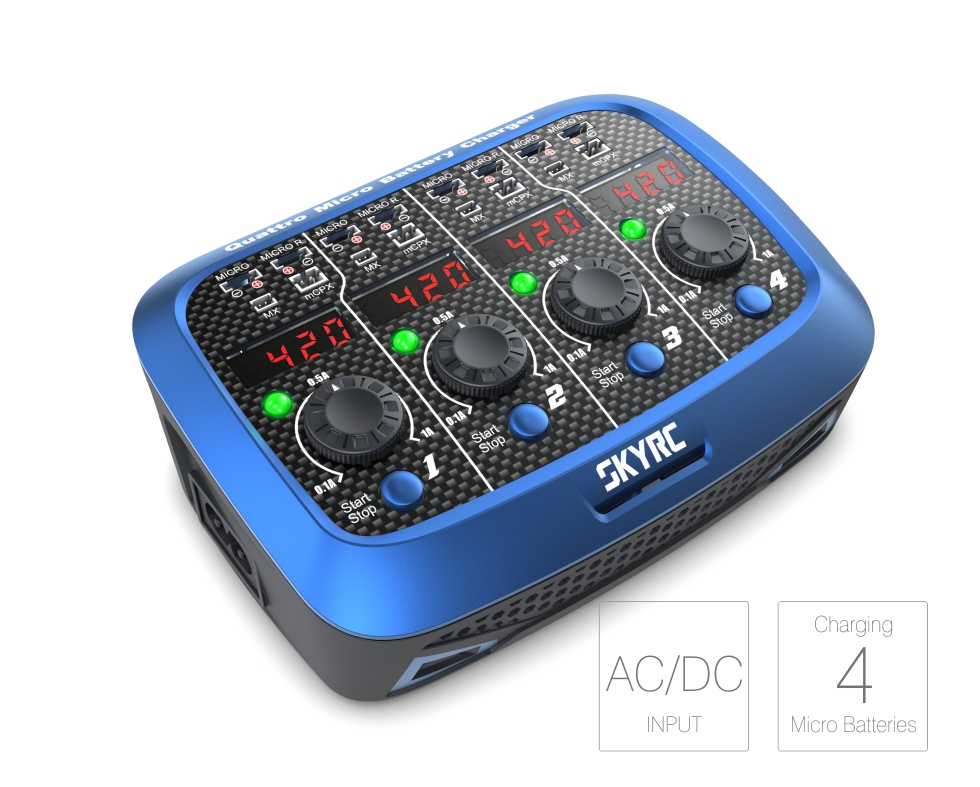

QUATTRO MICRO BATTERY CHARGER
SK-100079 Discontinued
 |
||||||||||||||||
 |
||||||||||||||||

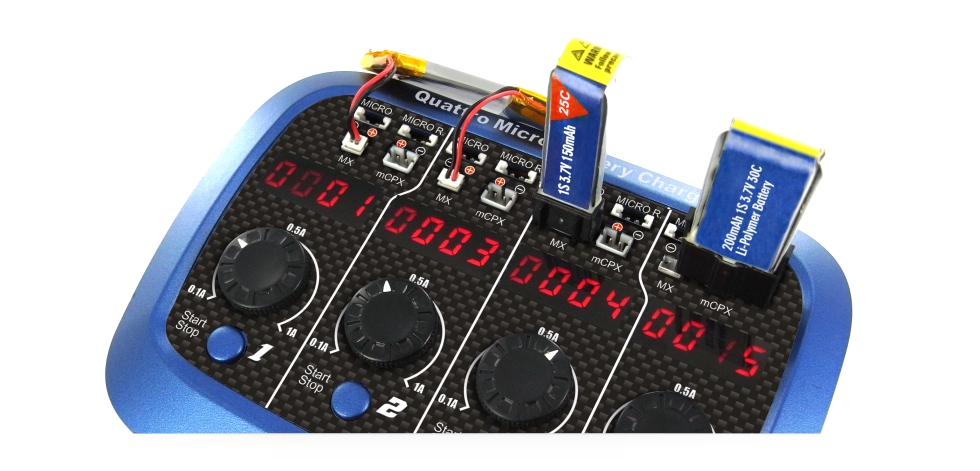

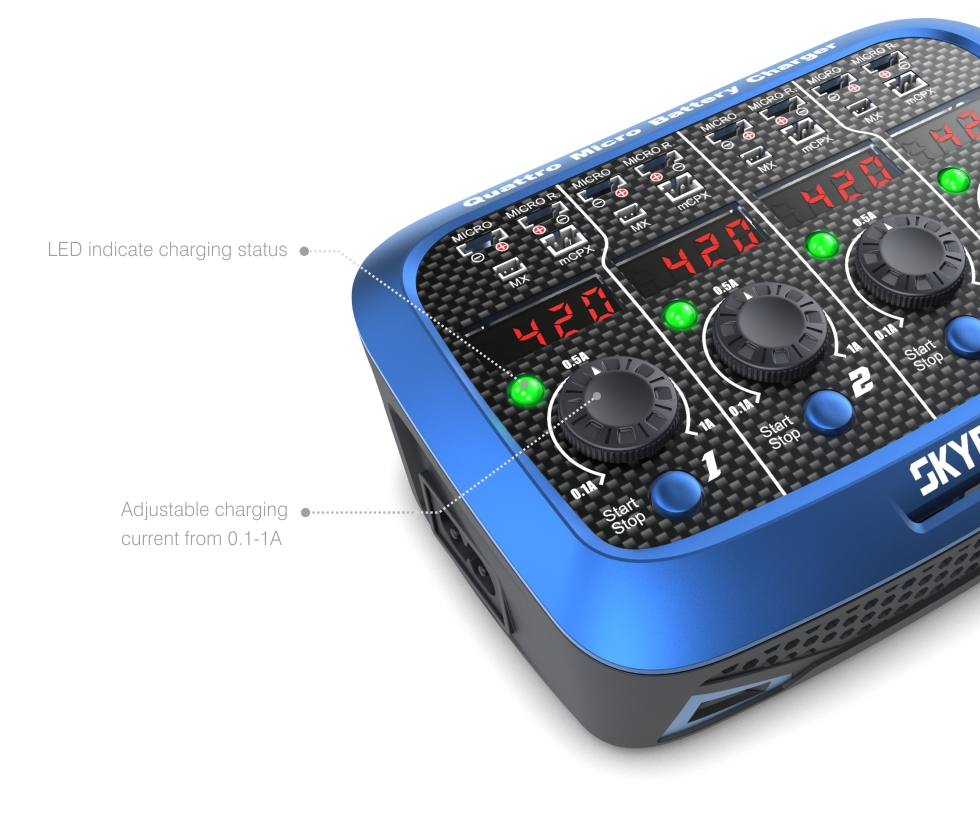

| Quattro Micro Battery Charger employs the circuit that features four totally independent but identical power outputs which are powered 4W each. It is designed for charging single cell LiPo.Insert the lead to the right connector in each port,the charger will charge 4 batteries at the same time. And the charging current can be adjusted from 0.1-1A by dial,the charging capacity and cell voltage can be displayed in each 4-digital LED Indicators. | ||||||||||||||||
 |
||||||||||||||||
 |
||||||||||||||||
|
|
||||||||||||||||
 |
||||||||||||||||
| Four totally independent but identical power outputs which are powered 4W each are capable of charging four 1S LiPo packs at the same time and fully independently. | ||||||||||||||||
 |
||||||||||||||||
|
||||||||||||||||
|
|
||||||||||||||||
 |
||||||||||||||||
|
||||||||||||||||
|
|
||||||||||||||||
 |
||||||||||||||||
|
|
||||||||||||||||
 |
||||||||||||||||

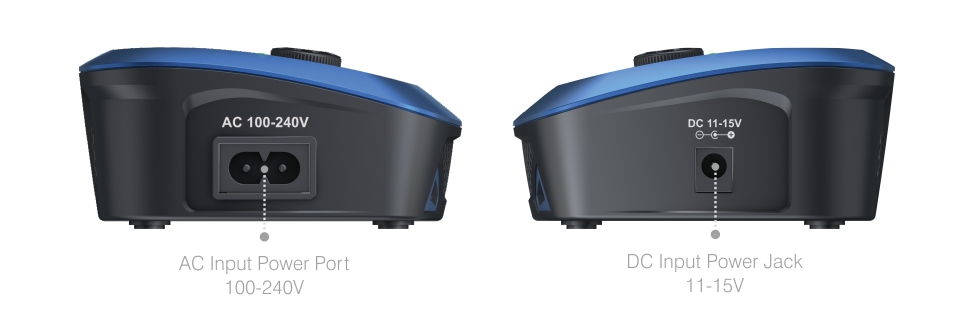

| Worldwide operation: need not any alternative switcher, worldwide safe operation, convenient to use at home or at the track. | ||||||||||||||||
 |
||||||||||||||||
|
||||||||||||||||
Specifications
AC Input
100-240V
DC Input
11-15V
Charge circuit power
4X4W±10%
Charge current range
0.1-1.0A±10%
Battery type
4X1 cell LiPo
Battery connector type
LOSI Micro/Walkera/MX/mCPX
Working temperature
0-50℃
Net weight
280g
