Angle Gauge
SK-500040
Meet SkyRC Angle Gauge
SkyRC Angle Gauge
Angle matters: fine-tune RC plane deflection in real time!
Surface angle adjustment for a model aircraft is the top priority, including the maximum value of the rudder, mixing control surface value of relative angle, and differential angle value of the aileron.
Mechanical measuring is the typical method to get the testing data but with low efficiency and significant deviation. In this way, the relative angle's value cannot be measured. SkyRC Angle Gauge comes as a solution.

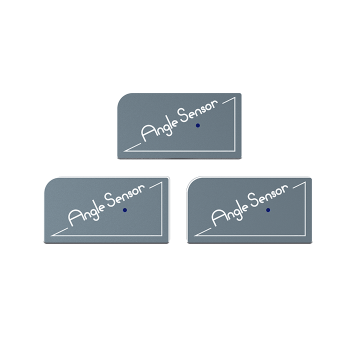

The unit consists of three sensing modules, which are wirelessly controlled via Bluetooth. With the RC Gears app, pilots can get started to measure the real-time measuring data after unboxing.
Mechanical measuring is the typical method to get the testing data but with low efficiency and significant deviation. In this way, the relative angle's value cannot be measured. SkyRC Angle Gauge comes as a solution.
The unit consists of three sensing modules, which are wirelessly controlled via Bluetooth. With the RC Gears app, pilots can get started to measure the real-time measuring data after unboxing.
App control, real-time display via Bluetooth
Suitable for fixed-wing aircraft
Built in 3.7V rechargeable Lithium battery
High Accuracy
The data tested by Angle Gauge has high reliability and accuracy. The measurement is accurate to 2 degrees with a travel accuracy of 0.1 mm, bringing a better flying experience to our pilots.
Accuracy meets craftsmanship
High-hardness aluminum is selected for the case, and strict CNC machining guarantees the stability and reliability that is dust-proof and has strong impact resistance.
Bluetooth 5.0
Faster & More Stable
SkyRC Angle Gauge is built with Bluetooth 5.0, which enables a faster and more stable connection. The app instantly displays real-time data once connected.
Angular adjustment is like a breeze!
Angular adjustment is like a breeze!
Everything is connected
Angle Gauge has its own app finally!
The app receives and records the aircraft's CG data in real-time via Bluetooth!
Angular adjustment is made easy!
Angular adjustment is made easy!
Small and Portable
SkyRC Angle Gauge is even smaller than AirPods in size, convenient to carry around.
Long live the battery
Thanks to the Bluetooth 5.0 ultra-low power consumption and our proprietary protocol, a single built-in 3.7V 10440 rechargeable LiPo battery provides sufficient power for comfortable use.
Universal Charging Port
The charge port is USB Type-C which is accepted as the de facto connector today, so most mobile phone cables can easily handle the charging.
CG Gauge, a must-have in RC Guru's Toolset
When it comes to RC airplanes, the position of the center of gravity is undoubtedly and vitally the most crucial thing. For the piloting safety and flying experience, SKYRC also introduces Center of Gravity Gauge to solve the CG positioning headache!
Specifications
Size and Weight
Dimension: 48.1*25.6*12.6mm
Weight: ≈25g
Weight: ≈25g
Other Parameters
Working Voltage: 3.4-4.2V
Working Current: ＜10mA
Interface: Type C
Input Voltage: 5V
Input Current: 200-300mA
Battery Type: 3.7V LiPo
Battery Capacity: 200mAh
Low-voltage Protection: ＜3.4V (Flashes Red)
Measuring Accuracy: ±2°
Travel Accuracy: ±0.1mm
Working Temperature: 0℃-50℃
Working Humidity: 5%-90% (No Condensation)
Storage Temperature: -10℃-50℃
Storage Humidity: 1%-75% (No Condensation)
Working Current: ＜10mA
Interface: Type C
Input Voltage: 5V
Input Current: 200-300mA
Battery Type: 3.7V LiPo
Battery Capacity: 200mAh
Low-voltage Protection: ＜3.4V (Flashes Red)
Measuring Accuracy: ±2°
Travel Accuracy: ±0.1mm
Working Temperature: 0℃-50℃
Working Humidity: 5%-90% (No Condensation)
Storage Temperature: -10℃-50℃
Storage Humidity: 1%-75% (No Condensation)
